XR Torque Battery Casing
XR Torque Battery Casing

XR Torque Battery Casing

$350.00
ColorRed Smoke

Kit comes fully constructed with:

  • A machined lid of selected colour
  • A black composite plastic casing
  • Soft lid gasket
  • A breathe patch
  • All Bolts
  • A clear LED window
  • Battery M20 cable gland
  • A sheet of 2mm adhesive foam, and 1mm adhesive foam

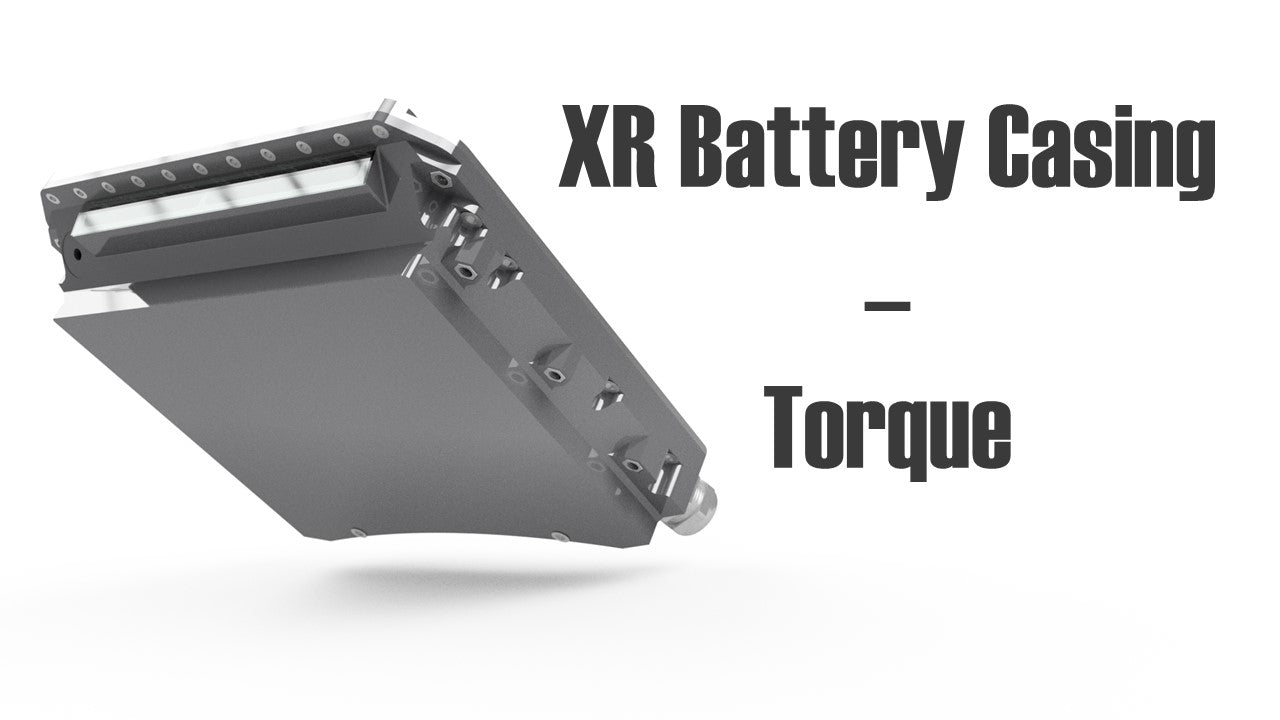

The XR Torque Battery Casing is intended to fit an 18s2p 21700 battery in the tail end of a Onewheel XR build, alongside any standard sized Onewheel BMS up to SSBMS size.

The machined aluminium lid ensures extreme strength and accuracy, whilst the composite soft and hard plastic casing ensures both protection and shatter resistance.

The casing is typically waterproof after assembly thanks to its gasket design, though waterproofing should always be tested with a TFL Badger kit before use.

This casing requires the use of a modified XR Torque bumper from the float life. Required modifications are the removal of the wheel-side plastic lip. With an Oscillating Multi-tool this modification is extremely easy.

  • Gasket Details:
    The gasket fits into a machined groove in the lid allowing for a tighter tolerance, reducing the wall width across the entire design and increasing internal volume.
  • Bolt Details:
    The Bolts are designed to be as long as possible in different sections of the casing to compress as much plastic as possible, increasing strength. The Bolts are M3 sized near the LED window and M4 sized elsewhere.
  • Printing details:
    The casings compositely-printed with tough TPU68D in thicker sections for increased toughness, and PPA-CF in thin, flat sections for rigidity.
    Every outside face of the casing is TPU68D, making an environment-exposing shatter extremely unlikely.
  • Fitment details:
    Thanks to the required bumper modification, this casing has the most volume of any XR box lengthways (153mm internally), hence its ability to fit the large SSBMS. The internal height is 42.25mm and attention must be made to match the thickness of your battery, plus the thickness of the utilised foam, to this free height.
