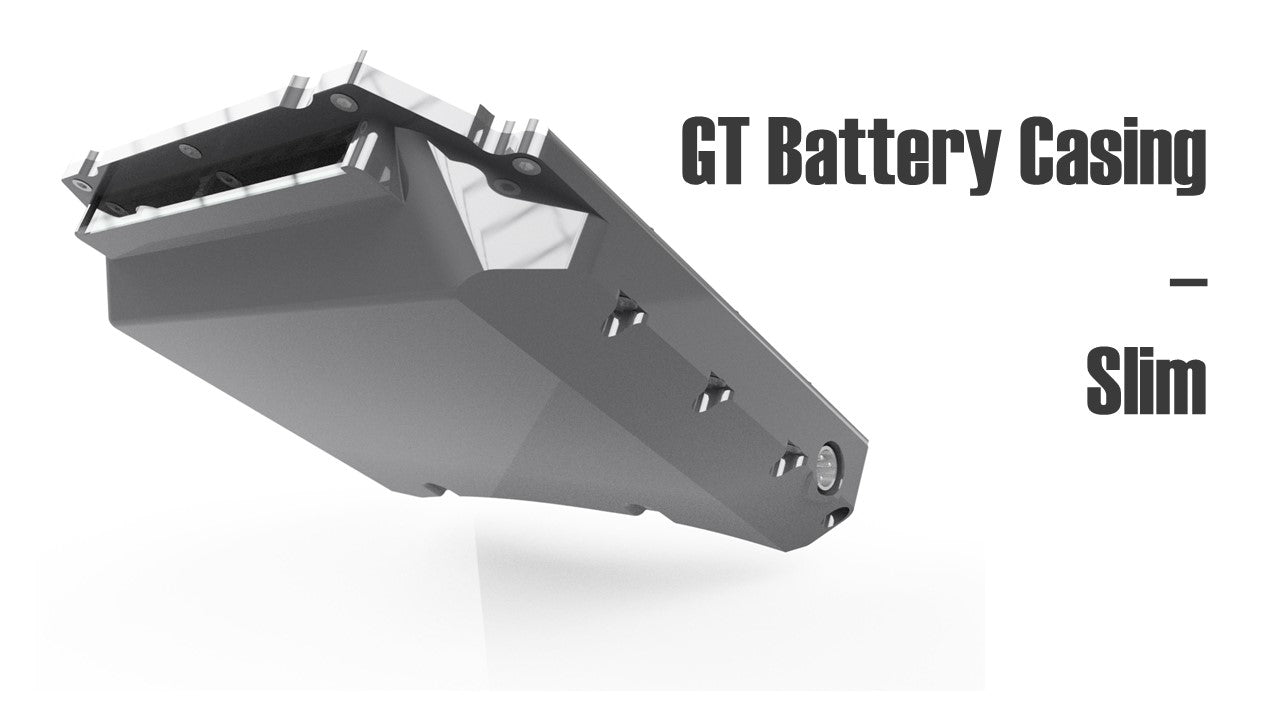

GT V3 Battery Casing

Please check the home page to understand the batch shipping system before making your order

Kit includes:

• Machined lid
• Nylon Carbon Fibre 3D printed Casing
• Printed soft gasket
• Clear LED Window installed
• All relevant bolts
• 1x M20 cable glands
• 1x Goretex Breathe patch

System Guide  -  (V2 / Mildly Outdated)

The GT V3 Sym casing sees significant improvements, such as led window reinforcing blocks, longer bolts to assist the structure of the printed section, and the ability to be printed at 45 degrees for better strength.

The rightmost M20 port is also slanted to suit a superflux plug, keeping the plug as far as possible away from the motor.

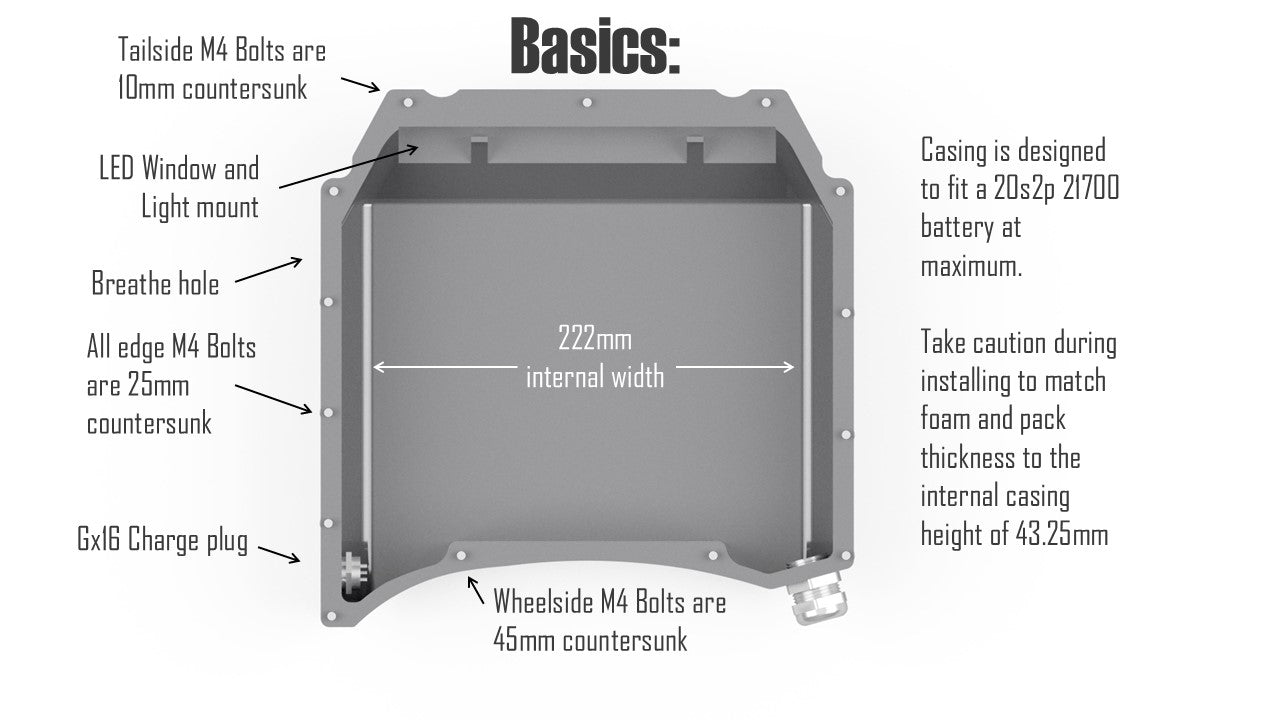

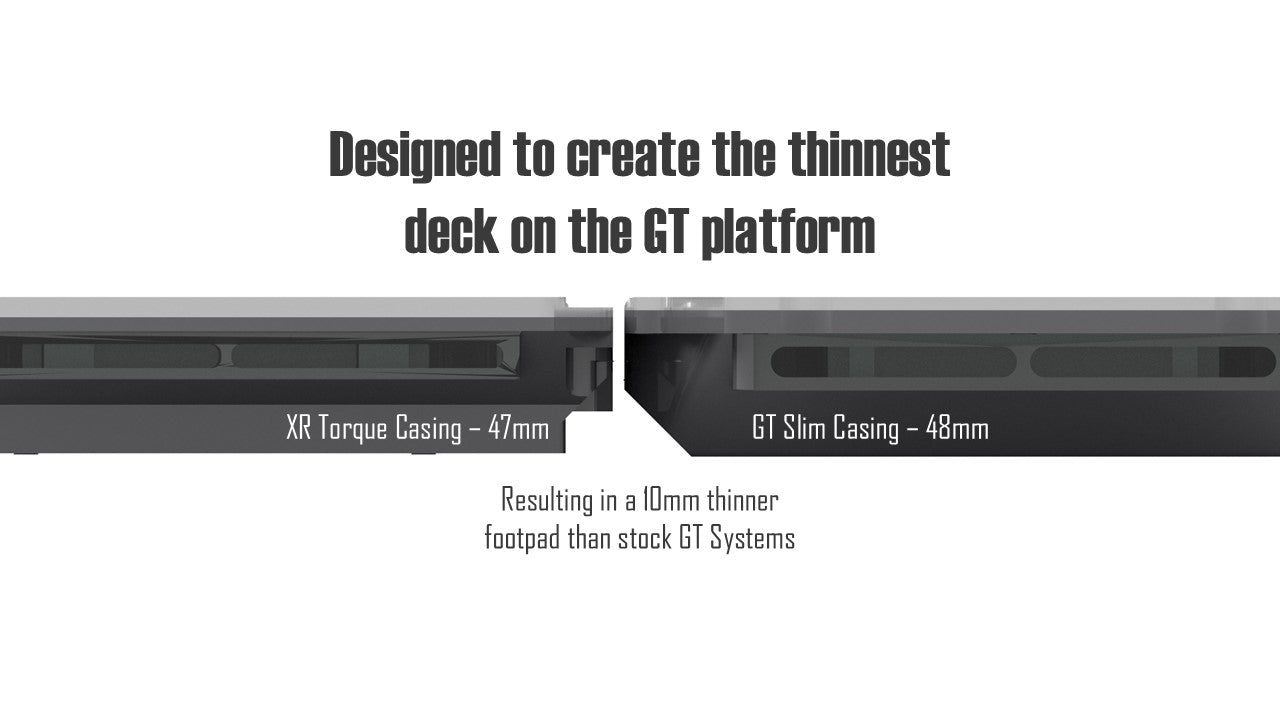

Thanks to improved wall, bolt, and gasket design, V3 Sym Casing has equal volume to the GT V3 Battery casing, and easily fits a 20s2p Samsung 50s cell ME4T pack. 44mm height, 222mm width, no compromise.

The casing is designed to fit a GX16 charge plug.

There is plentiful room for most onewheel sized BMS designs.

3D files available on the discord server
