21700 Battery Weld Frame

Please check the home page to understand the batch shipping system before making your order

Included in this kit:

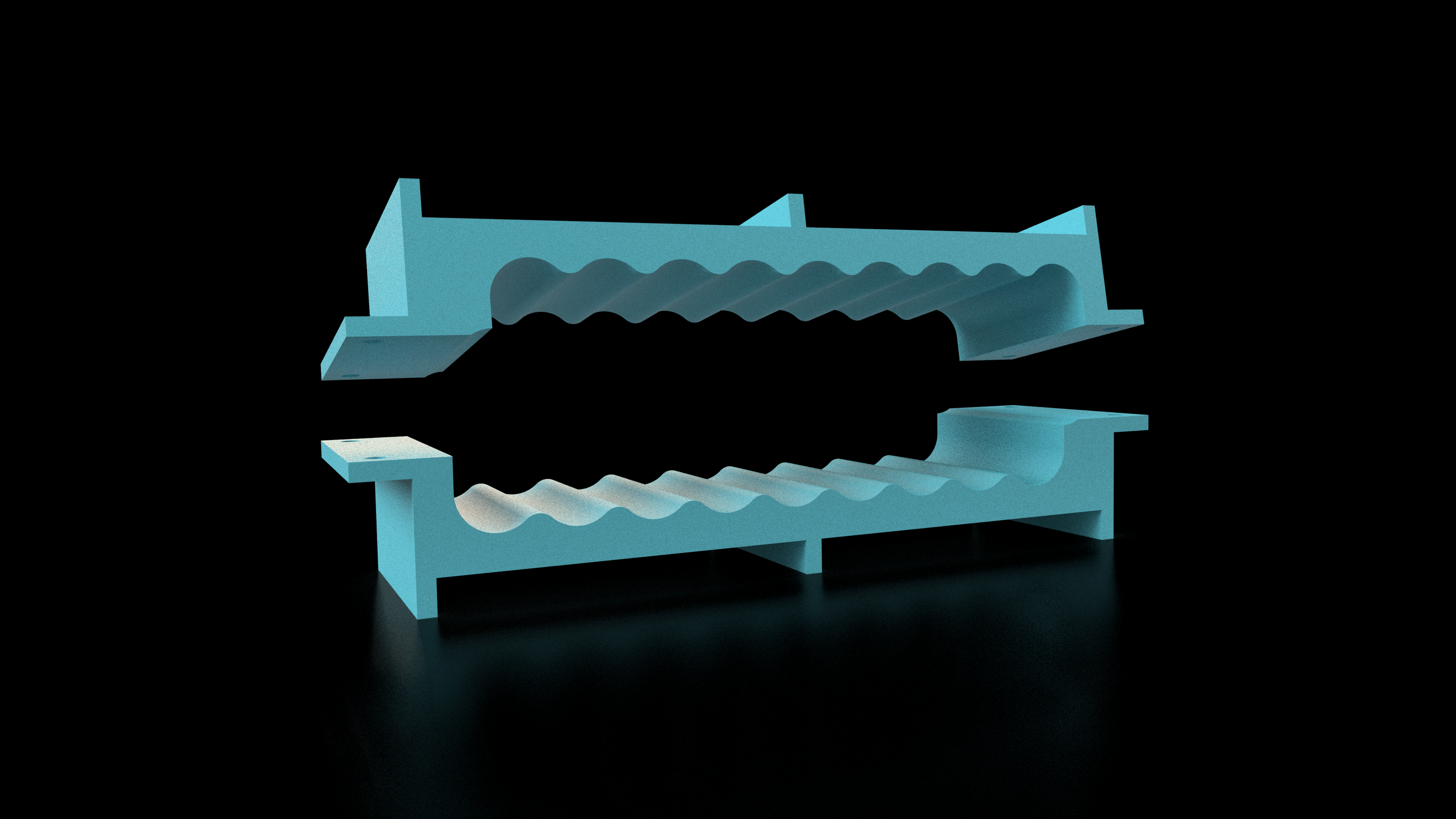

• The two halves of the 21700 weld frame
• relevant bolts

This bad boy is super helpful for assembling staggered 21700 battery packs.

The frame is filled out at a 9s2p configuration, half of the 18s2p pack, which is the intended maximum for both VOW GT and XR Battery / Sym casings.

This Weld frame is dimensioned to fit the largest of cells (21.4mm diameter Molicels) alongside 0.3mm fishpaper.

Less cells can be used in the frame in order to assemble 6s2p staggered modules for extended GT controller boxes or XR/GT Sym casings.

Inserts are installed and bolts are included for securing the two halves together.

Printed with a blue PETG.

3D files available on the discord server
